Product Description

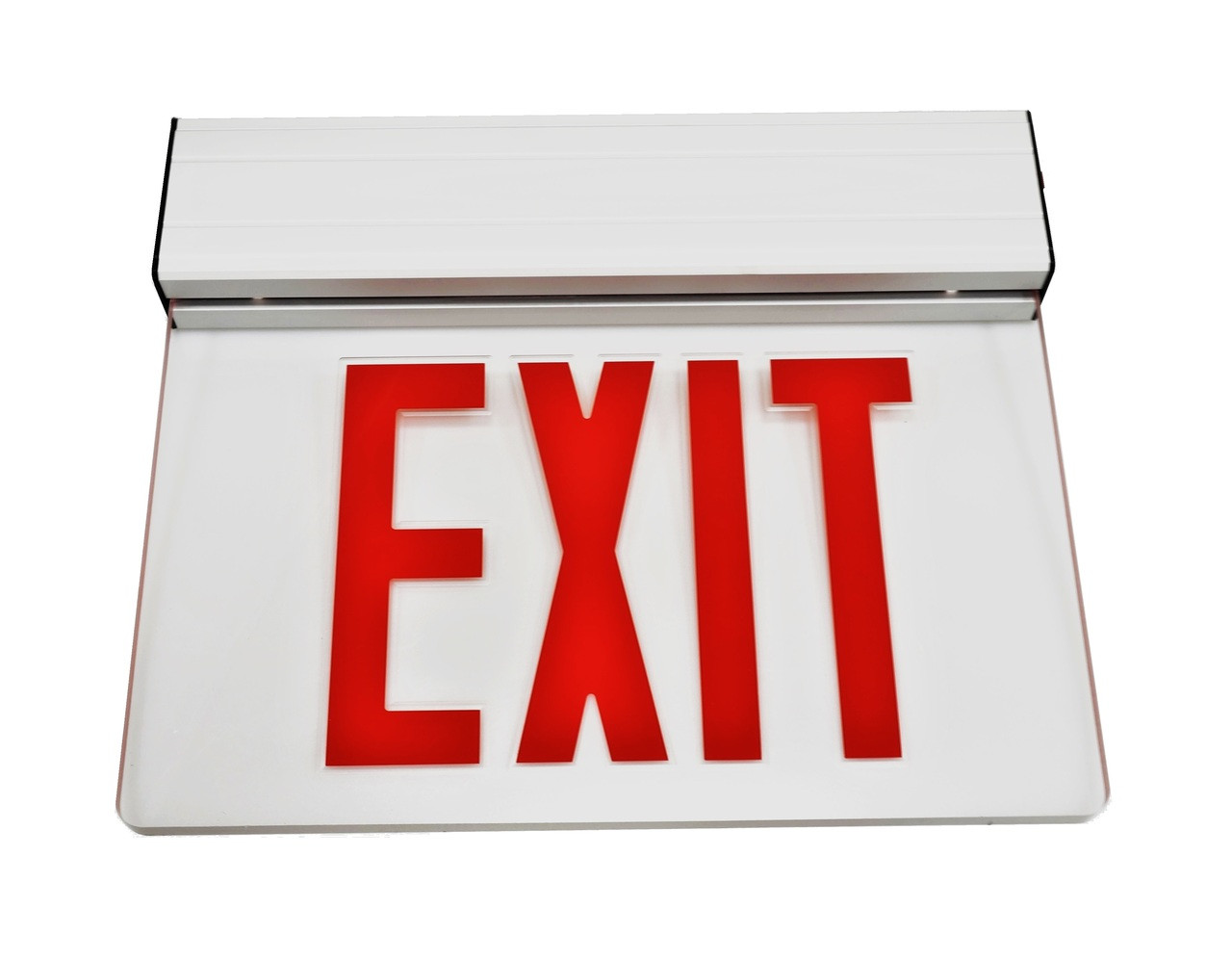

NICOR LIGHTING EXL2-10UNV-AL-CL-R-1 Edge Lit LED Emergency Exit Sign, Clear with Red Lettering
The EXL2 LED Edge Lit Exit Series presents a contemporary design with ease of installation and dependability in mind. Constructed of impact-resistant, optically clear acrylic, choose from clear single faced or mirrored double-faced panels. High output LEDs deliver an indirect, evenly illuminated edge-lit exit sign with exceptional light distribution and a maintenance-free nickel-cadmium battery for long life. The EXL2 Series offers flexible installation for surface ceiling, wall or end mount options along with field adjustable chevrons for universal configuration based on your application?s directional needs.
Area of Usage: Commercial
Product Type: LED Exit Sign
Product Color: Clear | Red Letters
Finish: Satin
12.75"Primary Piece: Housing | Body
Primary Piece Material: Aluminum
Secondary Piece: Face
Secondary Piece Material: Impact resistant acrylic
Installation/Connection Type: Hardwire
Voltage: 120-277V
Wattage: 2.3W
Light Source: LED
Bulb: LED (Included)
Listing: UL924/cUL
NFPA101 NFPA70
Rated: Damp
Warranty(years): 2
Glass, Single Sided Exit Sign Configuration
Specification grade aluminum extrusion design
120/277VAC Dual Voltage Operation, 60Hz input
Push button test switch with LED indicator
Maintenance-free NiCad battery provides 90-minute emergency operation
Mounting plate allows for surface ceiling, wall or end mount options
Optional left and right arrow Indicators included
Low voltage disconnect eliminates deep discharge
Brown-out, short circuit and voltage surge protection
Protected by NICOR 2 year limited warranty
Notes: 3.6V | Ni-Cad | 12W | 0.1A | 600mAh
