Product Description

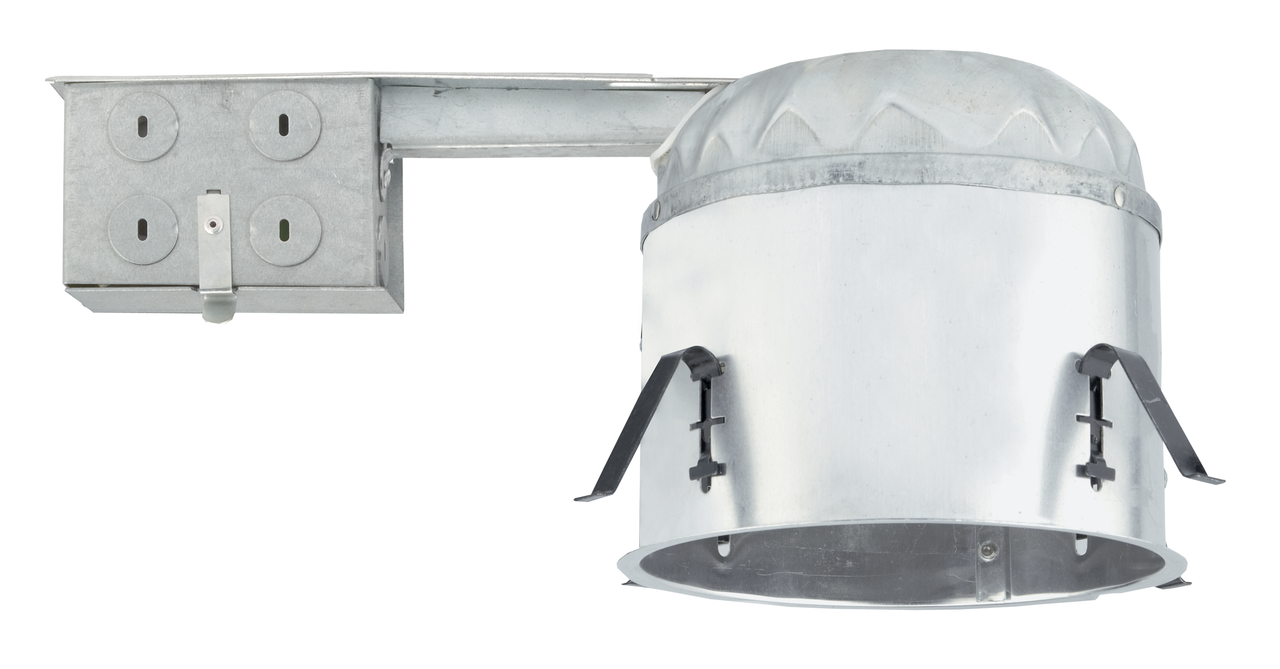

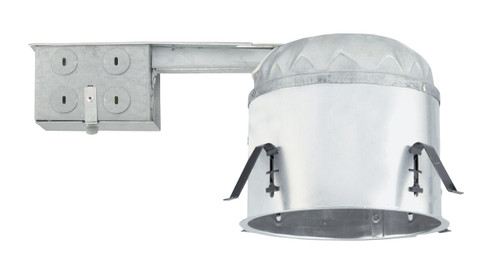

NICOR LIGHTING 17014AR 6 inch Shallow Housing for Remodel Applications, IC-Rated
This six-inch IC rated housing is suitable for remodel in residential and commercial applications and for direct contact with insulation. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. Integral thermal guards protect against improper lamping and with lamp wattage ratings and apertures based off trim selection. The housing adjusts from 1/2?ö to 1 1/2?ö to accommodate ceiling thickness and its 5 3/4?ö height allows it to be used in 2?ö x 6?ö joist construction.
Size: 6"
Product Type: Remodel Housing
Product Color: Neutral
Use: Residential
Voltage: 120V
Wattage: 150W Max
Light Source: Incandescent
Bulbs Included? No
Number of Bulbs: 1
Recommended Bulb Type: BR40/PAR38
Bulb Base: Medium/E26
Dimension(in): 11.25(L) x 6.8(W) x 5.75(D)
Hardwire/Plug/Screw: H
Certification: UL/cUL
Rated: IC-Rated
Other Certification: Airtight
Location Rated: Damp
Warranty(Years): 1
Suitable for existing construction and remodel applications
Airtight rating provides for additional insulation.
Aluminum construction provides greater heat dissipation
Integral thermal protector guards against improper lamping and misuse of insulation materials.
Adjustable socket bracket assures proper and consistent lamp positioning.
Airtight housing limits exchange of air between ceiling plenum and heated/cooled areas
Supplied with 3 IDEAL push-in wire connectors
IC rated. Suitable for direct contact with insulation
Listed for through branch circuit wiring and includes several 3/4?ö knockouts
Protected by NICOR 1 year limited warranty
Notes: 6 inch Shallow Remodel Housing
