Product Description

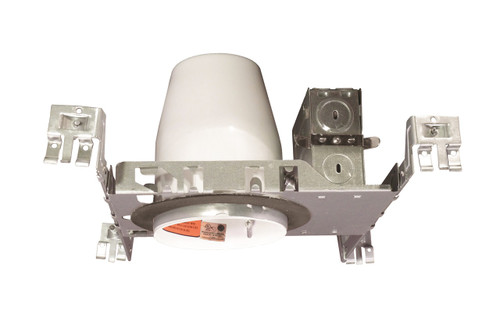

NICOR LIGHTING 17014A-LED-ID 6 inch Shallow LED Housing for New Construction Applications
This six-inch IC rated housing is suitable for new construction in residential and commercial applications and for direct contact with insulation. The IDEAL base allows for quick, snap-in connection of NICOR?« D-series LED downlights. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. Integral thermal guards protect against improper lamping and with lamp wattage ratings and apertures based off trim selection. The housing adjusts from 1/2?ö to 1 1/2?ö to accommodate ceiling thickness and its 5 3/4?ö height allows it to be used in 2?ö x 6?ö joist construction.
Product Color: Neutral
For Use Type: Residential
Certification: UL/cUL
T24
IC-Rated
Airtight
Location Rated: Damp
Require Hardwire
Voltage: 120V
Wattage: 150W Max
Light Source: LED
Bulb Included: No
Aluminum construction provides greater heat dissipation.
Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas.
Integral thermal protector guards against improper lamping and misuse of insulation materials.
Adjustable socket bracket assures proper and consistent lamp positioning.
Housing is secured to plaster frame with screws and can be removed for access to junction box.
Housing adjusts from 1/2?ö to 1 1/2?ö to accommodate ceiling thickness.
Four pryouts with integral strain relief simplify Romex installation.
Four double-headed captive nails provide for ease of installation.
Bars can be repositioned 90?? on plaster frame without tools.
Protected by NICOR 1 year limited warranty
120-277V | Airtight | New Construction | IC
6 inch Airtight LED Housing | IDEAL Base for quick connection
