Product Description

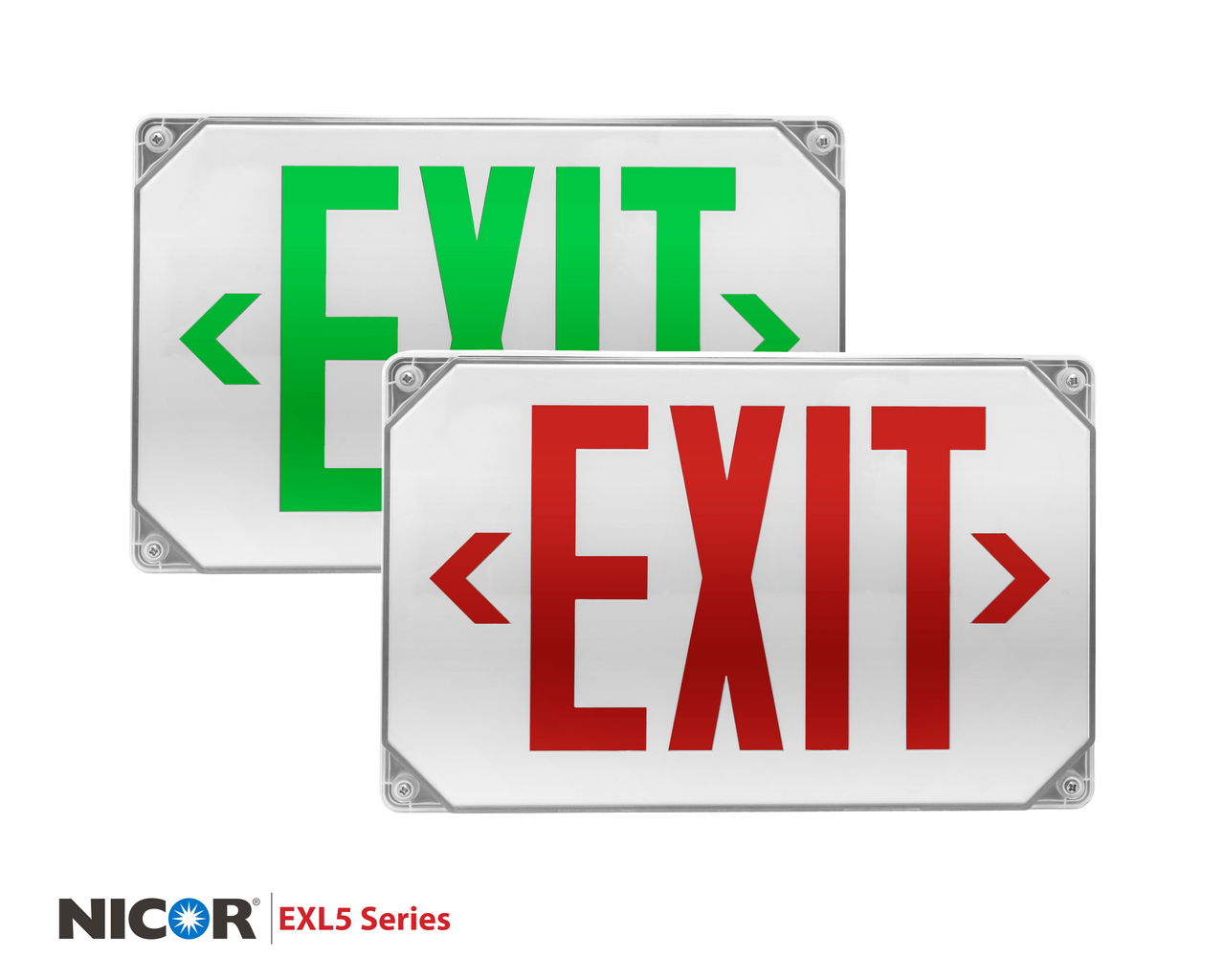

NICOR EXL51UNVWHG2 EXL5 Series LED Outdoor Emergency Exit Sign, Green Lettering
The NICOR EXL5 Series Outdoor LED Exit Sign is code compliant for Outdoor, Wet Location, and Battery Backup requirements. It features a durable corrosion-resistant polycarbonate shield to ensure a wet-location rating. ItÂ’s constructed using a new injection-molded ABS thermoplastic housing thatÂ’s flammability (UL-94-V-0) rated. The EXL5 includes a Nickel-Cadmium battery to provide 90-minute emergency run-time that kicks on if the power goes out. The EXL5 uses less than 3.6-Watts of electricity and can be installed in both 120-Volt and 277-Volt applications. The low-profile design keeps the fixture lightweight and easy to install. It can be surface mounted to a wall or ceiling using the included mounting bracket with EZ quick-connect. The EXL5 includes an additional faceplate for the backside (if required) and removable chevron arrows. The EXL5 is Wet-Location rated and protected by NICORÂ’s 1-Year Limited Warranty.
Gategory: Commercial LED
Color: White, Green Letters
Primary Material: ABS Thermoplastic
Secondary Material: Polycarbonate
Dimension(in): 12.7(L ) x 8(W) x 2.6(Depth)
Class Size(in): 12.7
Bulb Base/Connection Type: Hardwire
Voltage: 120/277VAC
Wattage: 2.74 (120VAC)
Light Source: LED
Listings/Certifications: UL Listed, cUL Listed, UL 924 Listed, UL-94-V-0 Flame Retardant, BC, Wet-Location
Suitable for Outdoor and Wet-Location settings
Sealed Polycarbonate shield protects internal components
90-minute emergency battery backup (UL 924 compliant)
1.2-Volt maintenance-free Nickel-Cadmium 500mAh battery
Injection molded thermoplastic ABS housing (UL94-V-0 rated)
Dual-Voltage for residential and commercial applications (120/277V)
Features a Push-To-Test button with indicator light
Includes universal mounting plate for ceiling or wall mount installation
Mounting Hardware and installation instructions included
Available with red or green lettering
Removable covers for directional chevron arrows
UL Listed for wet locations
Protected by NICORÂ’s 1-Year Limited Warranty
