NICOR EFH6-LED 6 in. Fire Rated New Construction Recessed Housing with IDEAL Quick Connect
The NICOR EFH6-LED is a Fire Rated 6-inch Recessed Housing designed for new construction applications. The housing is UL Classified for a 2-hour Fire Rating. The durable double wall steel construction incorporates a non-combustible fiber insulation layer to block flames and gasses from entering the ceiling above. The insulation layer also acts as sound proofing to reduce the noise level passed between floors. The EFH6-LED is designed for standard 6-inch recessed downlights and trims. It also features an IDEAL Quick-Connect for a simple snap-in connection to most LED downlights. This makes installation as easy as possible. The IDEAL quick-connect also improves light efficiency and quality that are usually lost through the Edison base connection. The EFH6-LED housing is Insulation Contact Rated (IC-Rated), Airtight, and Wet-Location Rated when used with a Wet-Location Rated downlight or trim. This makes it the perfect housing for showers and bathrooms. It also keeps your home or office insulated and energy efficient. The EFH6-LED also features extendable hangar bars and end brackets (with pre-set nails) that swivel 90° during installation. This allows them to be affixed one side at a time. The EFH6-LED is designed for 120-Volt applications and includes a 1-Year Limited Warranty.
Gategory: Residential LED
Color: Black | Neutral
Primary Material: Steel
Secondary Material: Steel
Dimension(in): 12.6(L ) x 9.5(W) x 6.6(Depth)
Class Size(in): 6
Recommended Bulb Type(S): LED (any shape), A19, R30, PAR30, BR30, BR40
Bulb Base/Connection Type: IDEAL Quick-Connect
Voltage: 120VAC
Listings/Certifications: UL Listed, cUL Listed, UL Classified (2 Hr Fire Rated), cUL Classified, ANSI/UL 263, ANSI/UL 1598, IC-Rated, Airtight, ASTM 283 Compliant, Damp-Location, Wet-Location (with specified trims)

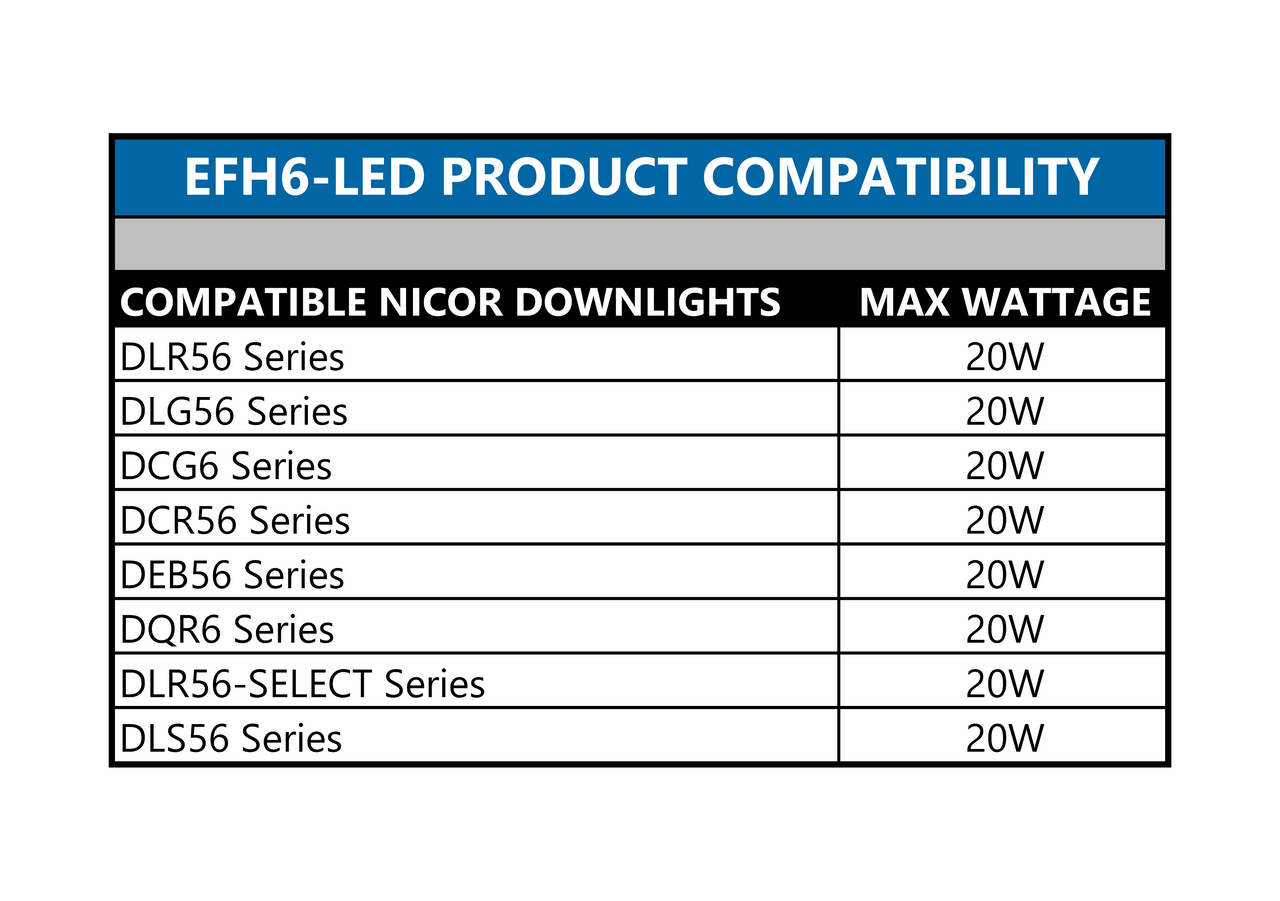

Designed for LED Downlights rated up to 20-Watts (not included)
Includes an IDEAL quick-connect base for fast installation
Intended for New Construction applications only
UL Classified 2-hour Fire rating
Indestructible 22-gauge double wall steel construction
Extendable hangar arms with swivel end brackets and pre-set nails
Uses standard Line Voltage (120-Volt AC)
IC rated. Suitable for direct contact with insulation
Airtight (ASTM-283) housing provides increased insulation and energy efficiency
Wet-Location rated when used with Wet-Location downlights
Built-in Junction box with quick push-in wire connectors
Protected by NICOR's 1-year limited warranty
